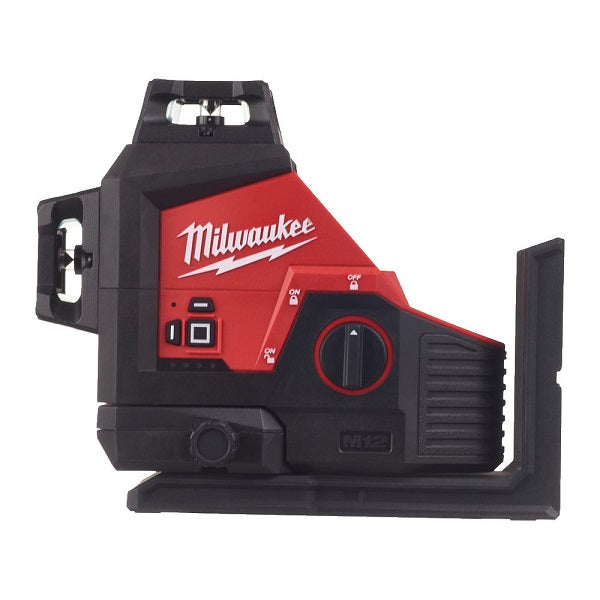

Milwaukee Cross Line Laser 12V 3x360° M12 3PL-0C

The M12™ 3 x 360° battery-powered cross line laser offers all-in-one functionality with one horizontal and two vertical lines for quick and easy alignment, leveling, squaring, and transferring, making it easy to design large spaces with one tool.
Equipped with green high-intensity diodes to ensure maximum visibility - up to 4x better visibility compared to red lasers.
High-intensity green laser beams offer a working range of 38 m in radius (50 m with a detector)
Offers over 15 hours of all-day runtime with an M12™ B4 battery
3-mode pendulum system: Manual mode for use at any angle, self-leveling mode which compensates for uneven conditions with a 4° self-leveling range, and pendulum locking mode to protect components during transport.

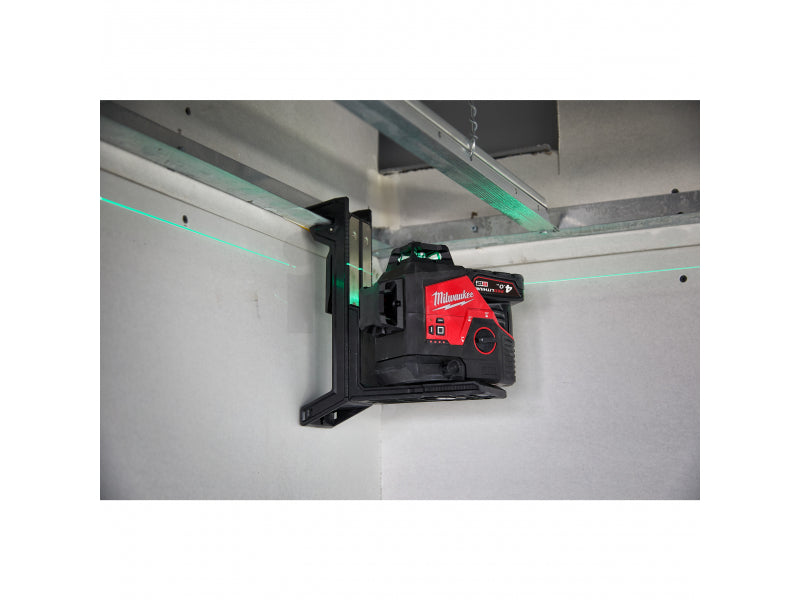

Integrated magnetic mount with rear-mounted reinforced rare-earth magnets, ¼″ and ½″ tripod threads and suspension hole - allows attachment to steel bolts, wooden bolts and tripods
The mount also allows the laser to be fixed at 330° around the plumb point, with an integrated fine adjustment for faster point-to-point alignment.
Suitable for construction sites with protection class IP 54, withstands drops from up to 1 m height
100% system compatible with the MILWAUKEE®-M12™ product range
Supplied with 1 x laser target plate and 1 x mounting bracket.

Technical data

Working area (m) 38.0
Work area with recipient (m) 50
Article number 4933478103
Delivered in a transport case
Accuracy (mm|m) 0.3
Compatible laser receiver LLD50
Laser classification class 2
Laser line color green
Laser projection 2x vertical, 1x horizontal
Maximum runtime with M12 B4 battery (h) 15
Self-leveling (°) 4.0
Self-leveling time [s] 3
Voltage (V) 12
