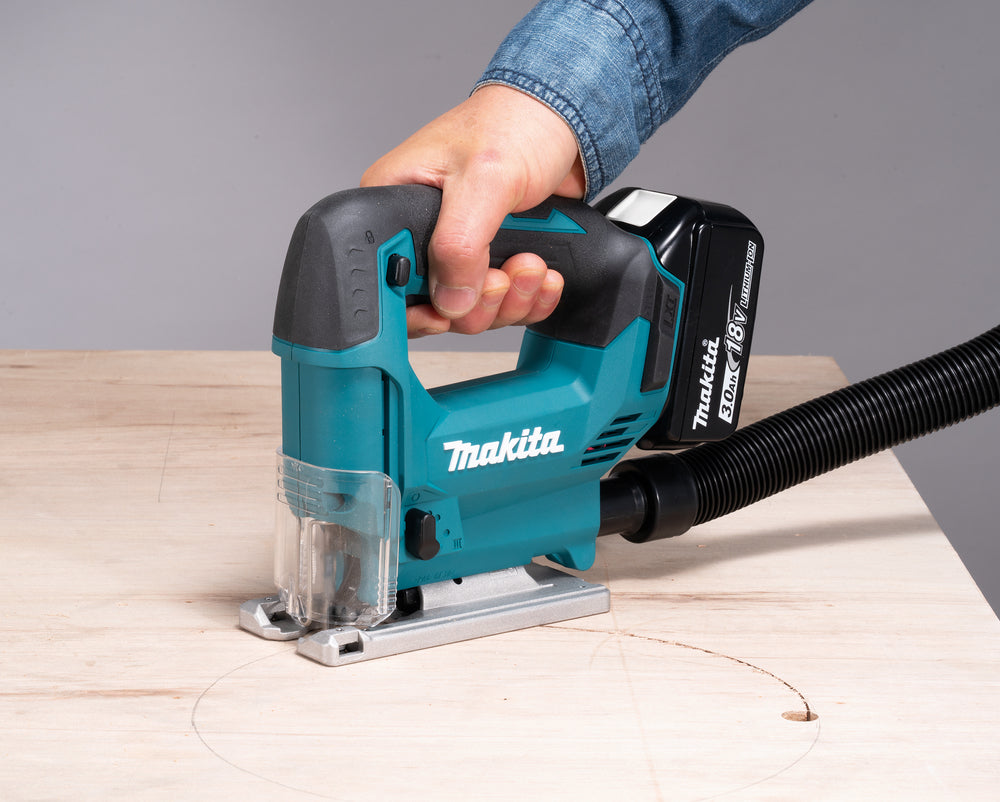

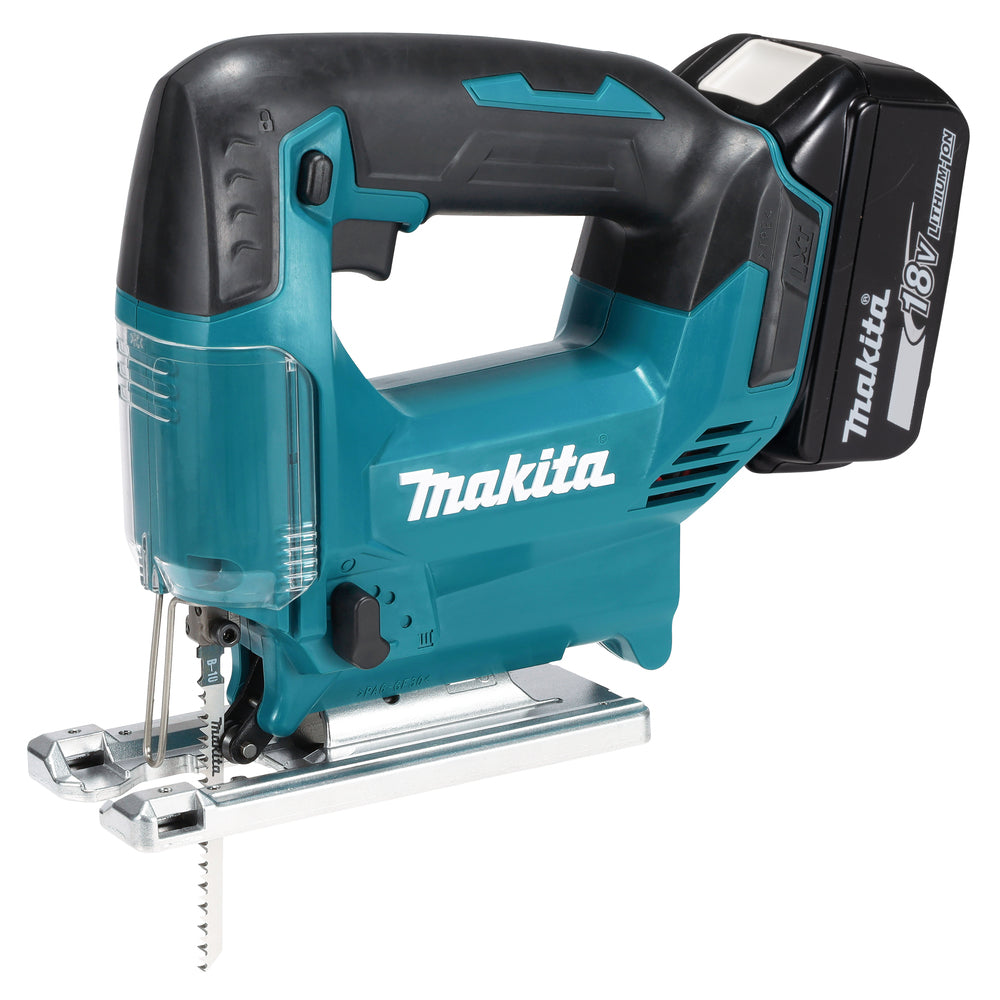

Makita 18V Cordless Jigsaw DJV186Z 65mm

Jigsaw with 3-stage pendulum stroke adjustment and optional external dust extraction. This compact 18V cordless jigsaw with 3 pendulum stroke settings and straight-line travel offers a cutting depth of up to 65 mm in wood, an electric brake, optional external dust extraction, and an ergonomic soft grip – perfect for precise curved and miter cuts in wood, aluminum, or steel.

Cutting angle: 0–45° (adjustable on both sides)

Dust extraction via housing opening + optional extraction adapter

Ergonomic soft grip

Compact and handy design
The variable speed setting enables a wide range of applications.
3-stage pendulum stroke plus neutral position
Slim design with rubberized grip for added comfort
Tiltable base plate for cuts from 0° - 45°
Electronic brake for maximum efficiency and user protection

Technical data

LXT battery system
Battery voltage
18 V
(Idle) stroke rate
0 - 2900 min⁻¹
Lifting height
18 mm
Max. cutting capacity wood 90°
65 mm
Cutting performance steel
6 mm
Max. cutting capacity for aluminum
10 mm
Weight including battery
1.9 - 2.2 kg
Product dimensions (L x W x H)
257 x 81 x 196 mm
Max. tilt left / right
0 - 45 º
Vibration levels, cutting boards
7.5 m/s²

Vibration uncertainty factor (K-value), cutting boards
1.5 m/s²

Vibration levels, sawing metal
4.2 m/s²

Vibration uncertainty factor (K-value), sawing metal
1.5 m/s²

Sound power level (LWA)
93 dB(A)
Sound pressure level (LpA)
85 dB(A)
K-value noise
3 dB(A)
Battery type
Li-ion
Max. chamfer area (right)
0 - 45 º
