Bosch line laser cross line laser combination laser GCL 2-15 G

Green laser lines for up to four times better visibility
Green horizontal and vertical laser lines offer up to four times better visibility than red lines.
Precise transmission applications thanks to red solder points

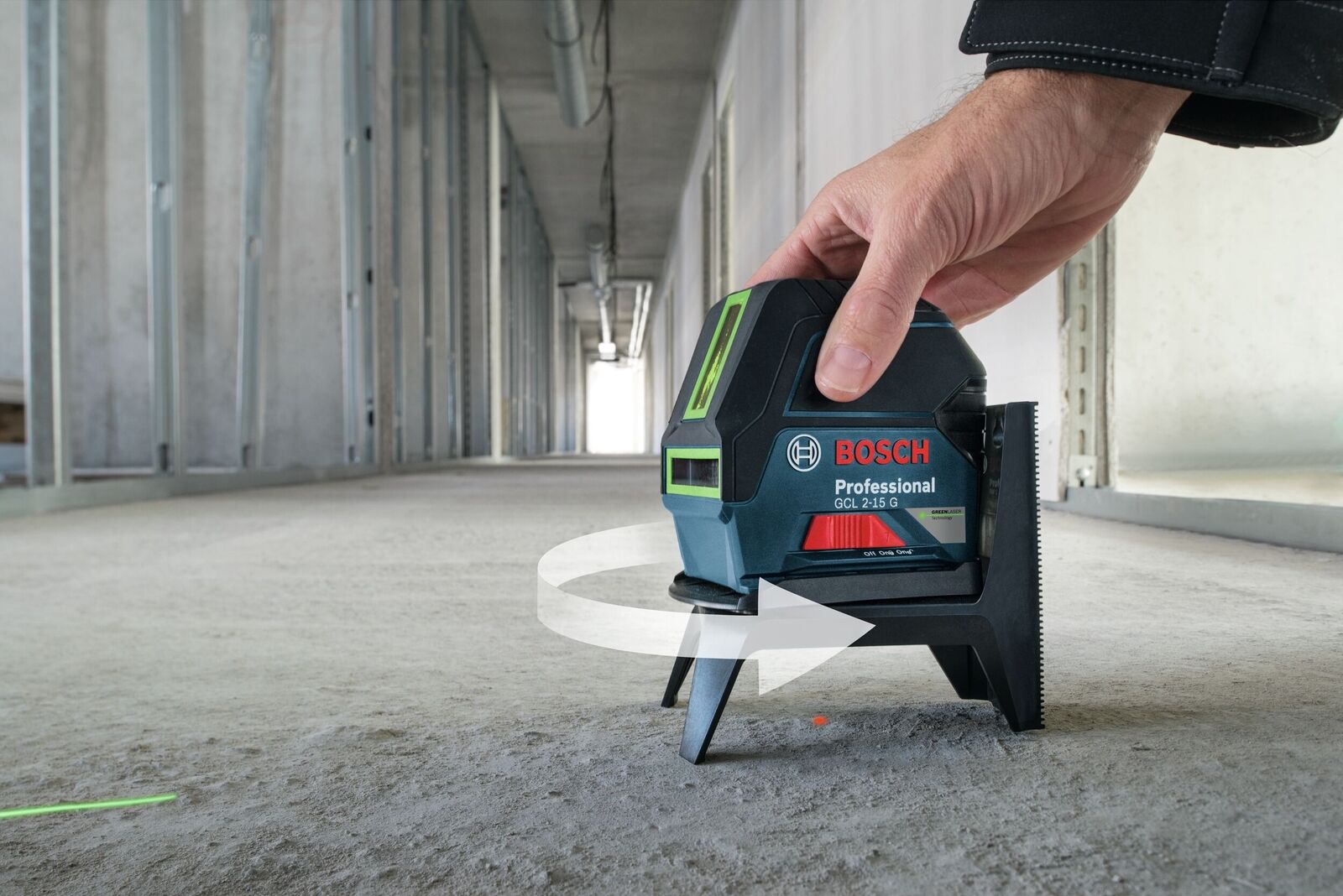

The RM 1 Professional rotating mount allows for easy alignment of the laser lines around the plumb points.

Technical data

laser diode
Line: 500 - 540 nm, < 10 mW, Point: 630 - 650, < 1 mW
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 70 °C
Laser class
2
Work area*
up to 15 m
Leveling accuracy*
± 0.3 mm/m* (* plus application-dependent deviation)
Working area of ​​laser points, max.*
10 m (top), 10 m (bottom)
Self-leveling area
± 4°
Leveling time
4 s
Dust and splash water protection
IP 54
power supply
3 x 1.5V LR6 (AA)
Operating time, max.
6 hours in cross-line and point operation, 8 hours in cross-line operation, 10 hours in line and point operation, 12 hours in line operation, 22 hours in point operation
Tripod thread
1/4", 5/8"
Weight, approx.**
0.49 kg
Color laser line
green
projection
2 lines / 2 points
Plumb point accuracy*
± 0.7 mm/m* (* plus application-dependent deviation)
