Bosch line laser cross line laser GLL 18V-120-33 CG

Unstoppable 18V line laser for high accuracy in harsh conditions
Easy switching between 18V battery, 12V battery and C-type alkaline cell battery types to avoid downtime.
Rubber-reinforced housing and laser window, as well as IP65 protection for worry-free work in the harshest environments

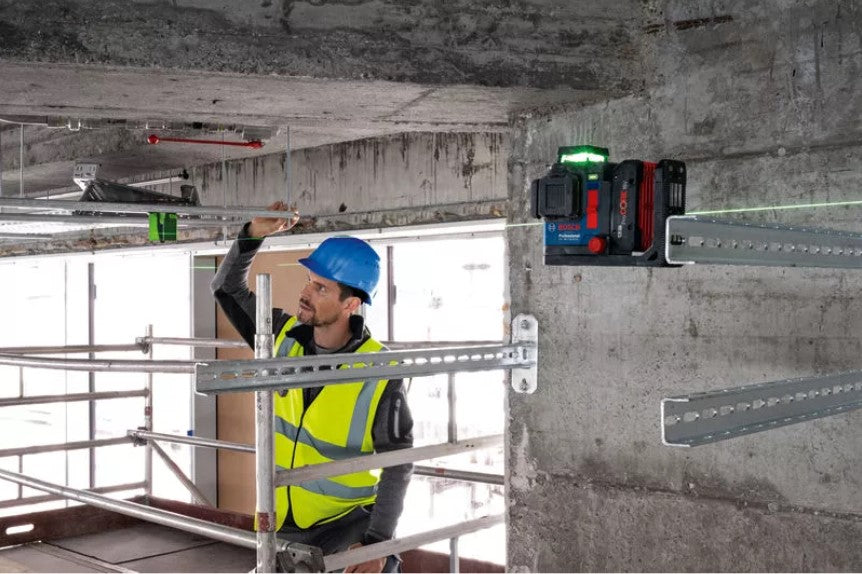

Secure mounting and precise work made easy thanks to integrated holder with strong magnets and rotary fine adjustment.

Product Highlights
The GLL 18V-120-33 CG Professional offers professional users in the construction industry reliable accuracy under the toughest working conditions. Its three-battery compatibility allows switching between 18V and 12V platforms, as well as C-type alkaline batteries, preventing downtime and allowing you to focus on the task at hand. This robust line laser features a rubber-reinforced housing and laser window, along with IP65 protection, so you can work without worrying about water, dust, or impacts. For ease of use, the laser has a backlit corner keypad for selecting individual laser lines and an integrated mount with strong magnets for quick and secure attachment. Fine-tuning of the laser lines allows you to adjust the vertical line without losing the reference point.

Equipment and application

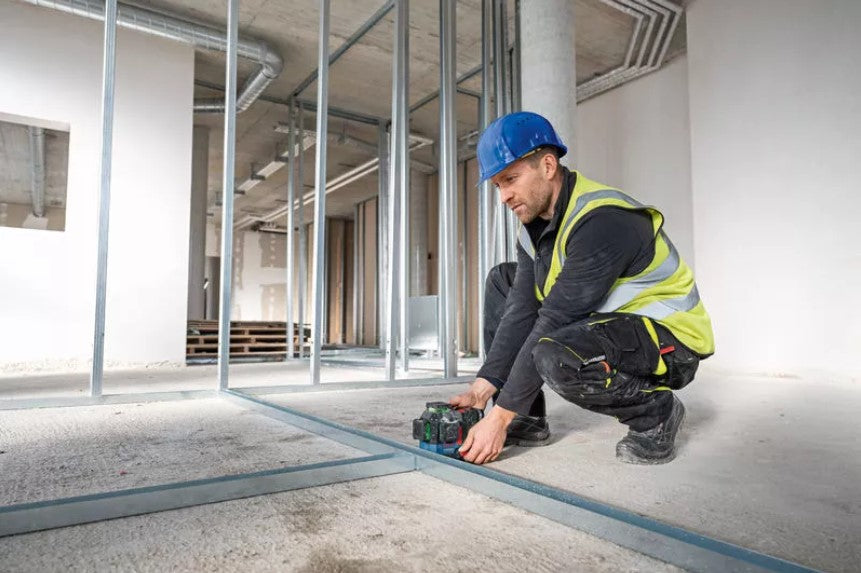

The Levelling Remote App for hands-free control of the laser lines saves time and ensures greater accuracy. This device projects three 360° laser lines and is ideal for construction workers when building drywall, installing stud walls, or aligning window or door frames – and also for installing pipes or suspended ceilings and aligning electrical outlets.

Technical data

Battery voltage 18.0 V, 12.0 V
Laser diode 500 – 540 nm, <10 mW
Operating temperature -10 – 40 °C
Storage temperature -20 – 70 °C
Laser class 2
Working area* up to 35 m²
Working area with receiver* up to 120 m²
Leveling accuracy* ± 0.3 mm/mᵃ
Self-leveling range ± 4°
Leveling time 3 s
Dust and splash water protection IP65 (except for battery and battery adapter)
Power supply: 18V Li-ion battery, 12V Li-ion battery, 4 x 1.5V LR14 (C)
Operating time, max. 20 h (18V 4Ah Li-Ion), 8 h (12V 2Ah Li-Ion), 8 h (4 x C, energy saving mode) in 3-wire mode
Tripod thread 1/4", 5/8"
Weight, approx.** 1.3 kg
Color laser line green
Projection 3 x 360° line
Compatible laser receiver LR 7
Weight with 4.0Ah battery** 1.9 kg
Weight with alkaline batteries** 1.8 kg
